Product Description：

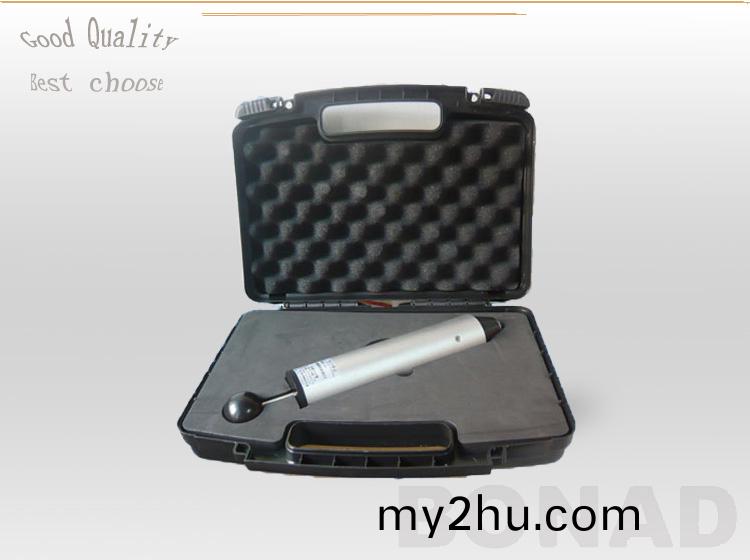

0.14J 0.2J,0.35J 0.5J 0.75J 1.0J 2.0J Single Spring Impact Hammer
Type：BND-T014/T020/T035/T050/T075/T100/T200/T106
Model:
BND-T014 0.14J Spring impact hammer
BND-T020 0.20J Spring impact hammer
BND-T035 0.35J Spring impact hammer
BND-T050 0.50 J Spring impact hammer
BND-T075 0.75J Spring impact hammer
BND-T100 1.0J Spring impact hammer
BND-T200 2.0J Spring impact hammer
BND-T106 0.14-1.0J Universal Spring impact hammer
Technical parameters:
Length:211mm
Weight:1250g
OD : 50mm
Hammer Weight :60g
Hammer Radius:10mm
The release force of impact: <10N
Impact Components: Including the hit ball handle the hammer ,weight 250g
Hammer head is made from white polyethylene imine first .
Types: Spring Operated Impact Hammer/0.14J/0.20J/0.35J/0.50J/0.70J/1.00J/ 1.50J/ 2.0J
Impact Emergy | Error |
0.14J | ±0.014J |
0.20J | ±0.020J |
0.35J | ±0.03J |
0.50J | ±0.04J |
0.70J | ±0.05J |
1.00J | ±0.05J |
1.50J | ±0.07J |
2.00J | ±0.08J |
Application:
Impact hammer are used to check the durability of enclosure for electrical applicance of other electronic product.The Impact Hammer is used to simulate the mechanical impact to test household and similar electrical appliances shell ,lever,handle,knobs,light and other shell to withstand mechanical shocks.
