Product Description：
Name：ALS-10 Ambient light sensor
Type：ALS-10
※ Product Feature
l Imported high-precision illuminance sensor with high measurement accuracy, fast response and good interchangeability
l Waterproof enclosure with IP65 protection
l Multiple ranges are available to ensure accuracy and resolution
l Voltage, current, RS232, RS485 and other output interfaces for easy system integration
l Perfect input and output protection mechanism to ensure stable operation of the transmitter

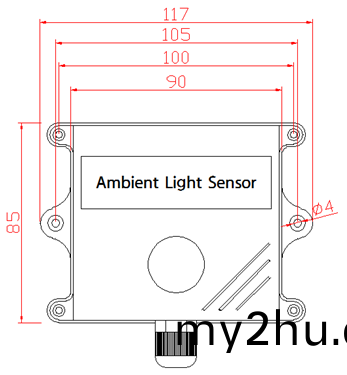

※ Dimensions
※ product selection
ALS-10 | ||
Code 1: Measurement range | A B C D E | 0-5000LUX 0-10000LUX 0-20000LUX 0-100000LUX 0-200000LUX |
Code 2: Output | A B C | RS485 0-2V 4-20mA |
※ Technical Parameter
Measurement parameter |
Response time is less than 0.3 second |
Measurement accuracy：±5%; |
Protection level：IP65. Customizable outdoor waterproof. |
Default cable length: 1 meter (can be customized) |
Outer size ：117*85*41（mm） |
Environment: |
Working temperature range: -40~85℃ |
Input: |
Working voltage 9-30V/DC DC |
