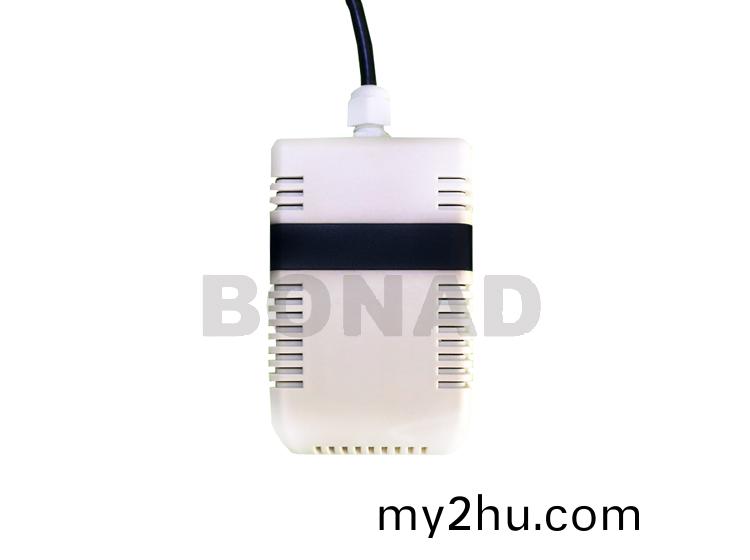

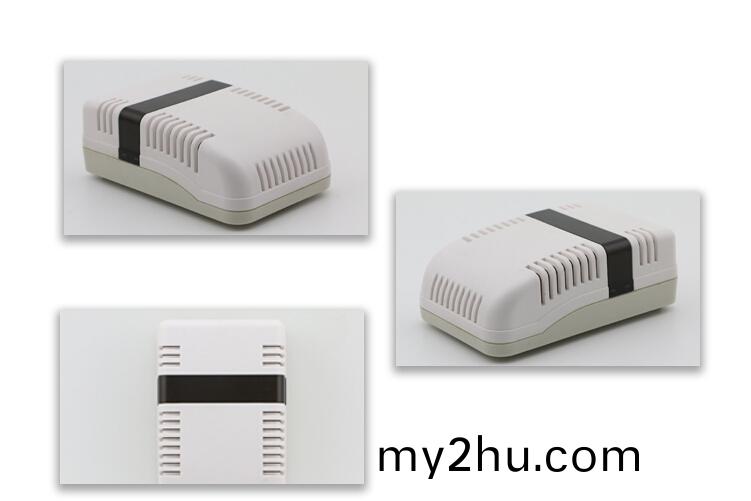

CO2 Gas Concentration Sensor/ Carbon Dioxide Transmitter

CD10 carbon dioxide transmitter uses dual-channel non-dispersive infrared gas detection technology detection principle, built-in temperature compensation function, with high sensitivity, oxygen-free gas dependence, long life, high precision, good stability, good repeatability, is not affected by other gas (CH4, H2S, SO2, N2, O2, etc.) . Can be widely used in meteorological, environmental, agriculture, aquaculture, greenhouse, laboratory, HVAC refrigeration control and other types of carbon dioxide concentration measurement of the occasion.

Product Description：

Name：CO2 Gas Concentration Sensor/ Carbon Dioxide Transmitter

Type：BND-CD10

Appliance :

Characteristics :

(1) dual-channel non-dispersive infrared gas detection technology, the sensor life of up to 10 years. Anti-water vapor interference, not poisoning.

(2) dual-channel measurement method, the effective elimination of changes in the external environment conditions on the impact of measurement.

(3) breathable structure to ensure rapid response to changes in concentration.

(5) high precision, fast response, good interchangeability, reliable performance.

(6) perfect protection circuit with a variety of signal output interface optional.

Technical Parameters

Output Signal	Voltage Output0-2V （The output impedance of approximately 0 Euro）	Current output4-20mA Load Resistance <500ohm）	RS485 Interface Modbus Protocol
Supply voltage	12-30V/ DC	12-30V/DC DC	12-30V/DC DC
Static power	60mA@24V DC DC	80mA@24V DC DC (Two current output channels are 20mA)	60mA@24V DCDC
CO2 range	0-1000ppm 0-2000ppm 0-5000ppm 0-10000ppm（1%） 0-30000ppm（3%） 0-50000ppm（5%）
The measuring principle and measuring method	Carbon dioxide infrared dual channel measurements
Preheating time	3 mins
Response time	90 S (90%)
Level of protection	IP54
Operating Environment	Working temperature:-20～60 ℃ Working Humidity :0～95% RH （no freezing）
Installation Method	Install with wall
The default cable length	1M, can be customizable
Connection	Preloaded cold terminal
Size	1307042mm

Code Choose:(Please tell us which model would you need to buy?)

Code number

Code

Code Description

Code 1:

Products

MEC10

CD10 carbon dioxide transmitter

Code 2: measurement parameters

carbon dioxide (CO2)

Code 3:

carbon dioxide Range

0-1000ppm

0-2000ppm

0-5000ppm

0-10000ppm（1%）

0-30000ppm（3%）

0-50000ppm（5%）

Code 4:

display

With display

Without display

Code 5:

supply voltage

12-30V DC

Code 6:

Output signal

Voltage Output 0-2V

Current output 4-20mA

RS485 interface ,Modbus Protocol

RS485 interface,Modbus Protocol & Voltage Output0-2V

RS485 interface,Modbus Protocol & Current Output4-20mA

custom design

Code 7:

line length

001

XXX

custom design

Code example:

carbon dioxide transmitter, range:0-5000ppm,with display,12-30V DC,RS485 interface,Modbus protocol,

5M cable. Code sample ：BND-CD10 - A C A A C 005
